Photovoltaic Panel

PV – Electric 300Watt

SKU: ice-pv-300 Category:

Description

Solar PV Photovoltaic Panels

Please note that the PV panels are custom to order and cannot be purchased online.
Please enquire about our Solar PV system or ask us for a quote.

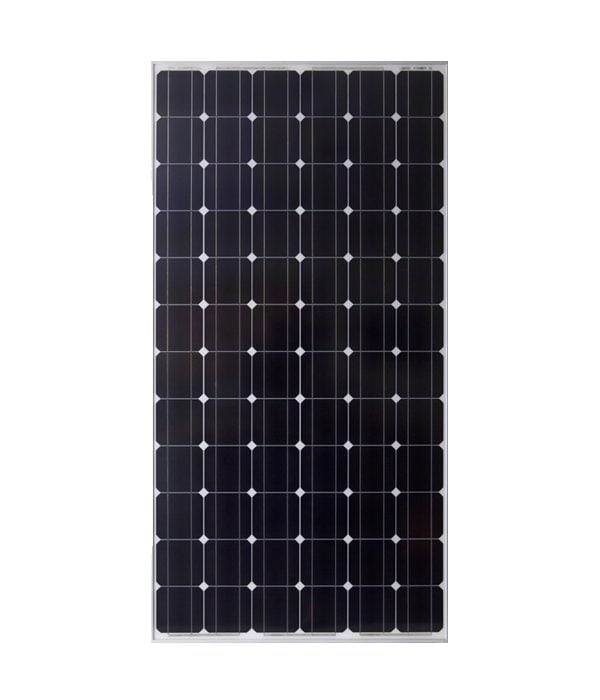

The Ice 300 Monocrystalline Panel
Quick Details
Model Number: HSPV300Wp156-72M
Material: Monocrystalline Silicon
Size: 1956x992x50mm
Number of Cells: 72
Max. Power: 300W
Colour: Black
Weight: 25kg
Front Cover: 3.2 mm thick, tempered glass
Back Cover: TPT (Tedlar-PET-Tedlar)
Encapsulant: EVA (ethylene vinyl acetate)
Maximum System Voltage: DC1000V (IEC)
Maximum Series Fuse: 15 A
Max. Wind Load / Max. Snow Load: 2400Pa / 5400Pa
OEM: Acceptable
Electrical parameters:
Module Type
HSPV300Wp156-72M
Maximum power at STC (Pmax)
300W
Maximum power voltage (Vmp)
36.7V
Maximum power current (Imp)
8.17A
Open circuit voltage (Voc)
45.0V
Short circuit current (Isc)
8.63A
Nominal Operating Cell Temperature
45 ± 2°C
Temperature coefficients of Isc
+0.049% /°C
Temperature coefficients of Voc
-0.340% /°C
Temperature coefficients of Pmax
-0.430% /°C
Standard Test Conditions (STC)
Irradiance 1000W/m2, Module temperature 25°C, Air M
ass (AM)=1.5
Power Production Tolerance
± 3%
Working condition:
Maximum System Voltage
DC1000V (IEC)
Maximum Series Fuse
15 A
Operating Temperature
-40°C~+85°C
Storage Temperature
-40°C~+85°C
Max. Wind Load / Max. Snow Load
2400Pa / 5400Pa
Application Class
Class A
Module Area (m2)
1.47m2
